Instructions:
Connect the wires according to the schematic. After the inspection is correct, close the power supply air switch. The sub-gate button indicator (green) is on and the fan starts. The LCD screen is as follows:
In accordance with the LCD screen prompts, press the closing button, at this time the closing indicator (red) is on, the off indicator (green) off, the LCD display is as follows:
Wait about 30 seconds, the auxiliary relay pulls, the LCD screen displays as follows:
Frequency conversion series resonance Press LCD prompt, press enter key to enter parameter setting.
In the parameter setting state, the LCD screen displays as follows:
Frequency conversion series resonance At this time, the test voltage character flashes. Press the right-hand side of the LCD screen to perform parameter setting. One of the characters flashing is the current operation line. Press ↑ to increase the parameter. Press ↓ to decrease the parameter. Adjust the test voltage. To the voltage of the preventive and crossover test procedure; press the confirm button, the start frequency character flashes at this time, the start frequency can be arbitrarily set within 30 ~ 300Hz, the method is the same as above; press the confirm button, the initial voltage character flashes Move, this item is used for field debugging, not the technical personnel of this manufacturer do not move; press the confirm button, the protection current character flashes, normally set above 30A. Press the confirmation button again to display the frequency as shown below:
The frequency conversion series resonance ratio selection is set according to the transformer's actual transformation ratio, and the specific values ​​refer to the factory test report. Press the confirmation key, the operating mode character flashes, press ↑ (↓) to perform “automatic†or “manual†selection; press the ENTER key to enter the test time setting, and the test time setting range is 1 to 60 minutes.
If you want to reset a parameter, press the escape key to reset. In the current time line, if you want to adjust the date or time, you need to hold down the regulator key first, and then press and hold the confirmation key to enter the date and time adjustment. The modification method is the same as above.
After the time is modified, press the enter key to enter the FM interface.

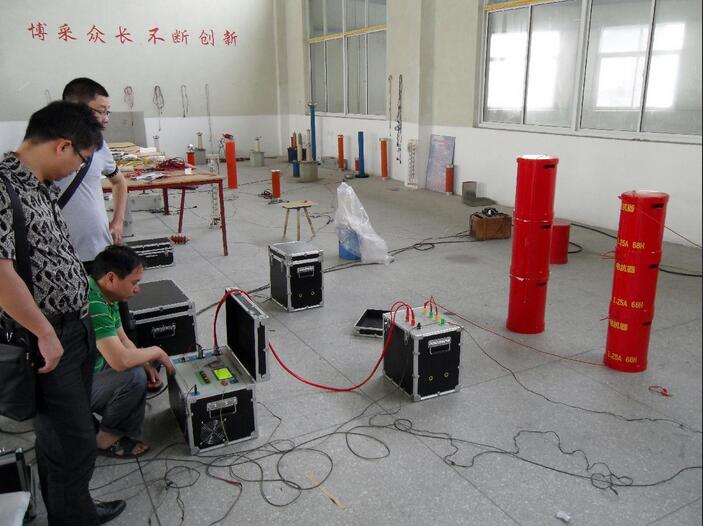

Frequency conversion series resonant test device operation method
1. Manual mode: If you select “Manual†mode, the LCD screen displays as follows:
The real-time time is displayed in the lower right corner. Press and hold the ↑ key to increase the frequency, press and hold the ↓ key to decrease the frequency. The frequency adjustment is divided into coarse and fine adjustment. Press and hold the “FM†key for coarse adjustment, the coarse adjustment step frequency is 1Hz; the FM key is not fine for timing, and the fine step frequency is 0.1 Hz. The tuning range is: Setpoint to 300 Hz. During the frequency modulation process, the test voltage is observed. When the test voltage value is maximum, the frequency is the resonant frequency. Further fine-tuning repeated up, down adjustment to the maximum. Press the ENTER key to enter the regulator.
The LCD screen shows the following:
Manual pressure regulation is divided into coarse adjustment and fine adjustment. Press and hold the “regulator†and ↑ (or ↓) keys for coarse adjustment, press ↑ (or ↓) individually for fine adjustment, press ↑ key for higher voltage, and press ↓ key. The voltage drops until the voltage reaches the set point and it enters the test state.
