Mold design In general, the first step in designing the mold cavity and core is to calculate the shrinkage parameters based on the material of the desired part. With SolidWorks Office Gold Edition software, designers can do this with a single click of the mouse. In addition, the SolidWorks software automatically suggests the best split line position based on the traction guidance in the part. As the designer clicks the mouse again, the SolidWorks Office Gold Edition software will identify the areas of the part that are not sufficiently traction. Designers can also use the tool to quickly modify the traction angle, such as the split line traction command; this command can bias a face to an adjacent angle. Typically, the next step in mold design is to create a separation surface that sets the separation between the core and the cavity. In addition to automatically creating separate faces for simple molds, SolidWorks software also provides a wide range of solid modeling and faceting tools, so designers can create separation surfaces for more complex molds. The core function includes full stereo modeling capabilities such as mold lines, variable radius fillets, housing and traction angles. Advanced surface modeling features include a polygonal surface patching feature that allows the designer to insert a surface that is tangent to the space set by multiple boundaries. The designer can also draw a set of curves and modify the face by pulling any point on the curve. In addition, the designer can combine the analysis part and the rack to form a unified part. Previous Next 5M Measuring Tape,Automatic Tape Measure,Tape Measure Scale,Measuring Tape 5 Meter SHANGQIU CHAOYUE MEASURING TOOLS CO., LTD , https://www.calibrateds.com
With the SolidWorks eDrawingsTM collaboration tool, designers can quickly notify customers of design modifications before the proposal is finalized. eDrawings optimizes the proposal writing process by improving communication with customers. Designers can use email to send eDrawings files including 2D drawings and 3D models to customers, and customers can view, print and re-examine these drawings with free viewing software. They can expand or rotate the model to view it at various angles and zoom in and out; in addition, the intuitive markup tool allows customers to improve overall and thorough feedback. eDrawings is not only an efficient way to bring customers and design programs closer, it also sets the company apart from the competition. PDMWorks? - SolidWorks Office Gold Edition's integrated Product Data Management (PDM) solution securely archives and organizes multiple versions of previous projects, enabling designers to quickly search through all 2D and 3D design drawings for new The mold assembly finds the relevant basic points. This tool will automatically generate bills of materials for this base point, so companies can accurately calculate the corresponding costs.

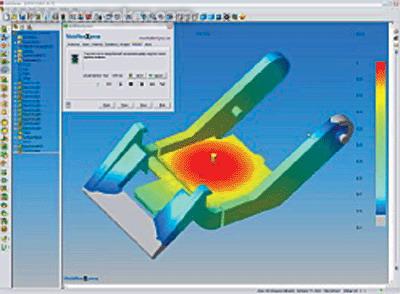

Mold flow Xpress gives designers more confidence to install parts during the molding process

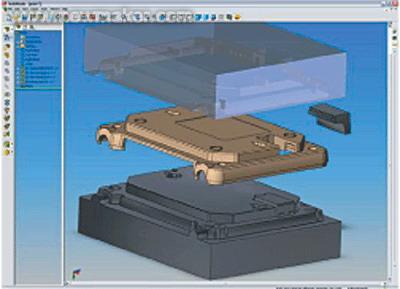

SolidWorks offers a variety of tools that make it easy for users to move from a single part design to the integration of all key processing parts
